Placing Window

Top  Previous  Next

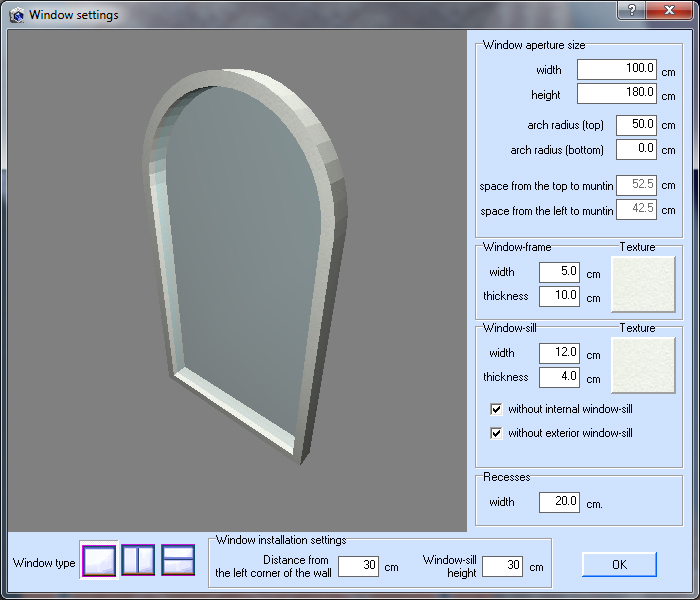

6. In order to insert a window you should at first select (double-click) a wall, where you want to insert a window, and then click on  button. Then the following dialog window will appear:

Here you can define window type, window size, arch radius, width, thickness, recesses width and texture of window-frame and window-sill. Moreover, in the bottom part of the dialog window you can set the distance from the left corner of the wall to the inserted window. Click OK, and a window with the given parameters will be inserted into the selected wall.

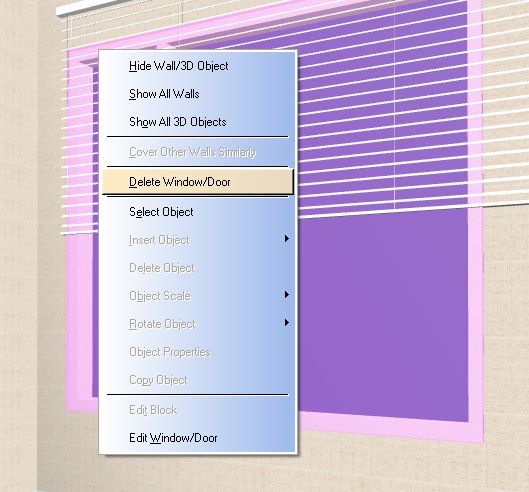

To delete a window you should at first select it by double-clicking on it. Then right-click on the window and select “Delete Object”. The selected window will be deleted.

In order to edit a window please select it by double-clicking on it, then right-click on it and select “Edit Window/Door”. After that the window will be loaded in the editor where you can change window parameters (for project created in version 7.0 and higher). If you have changed window contour or position and a wall where window is placed has a cover on it, the program will prompt you to clear cover on the wall, as a new window hollow in the wall no longer corresponds to the current hollow.
